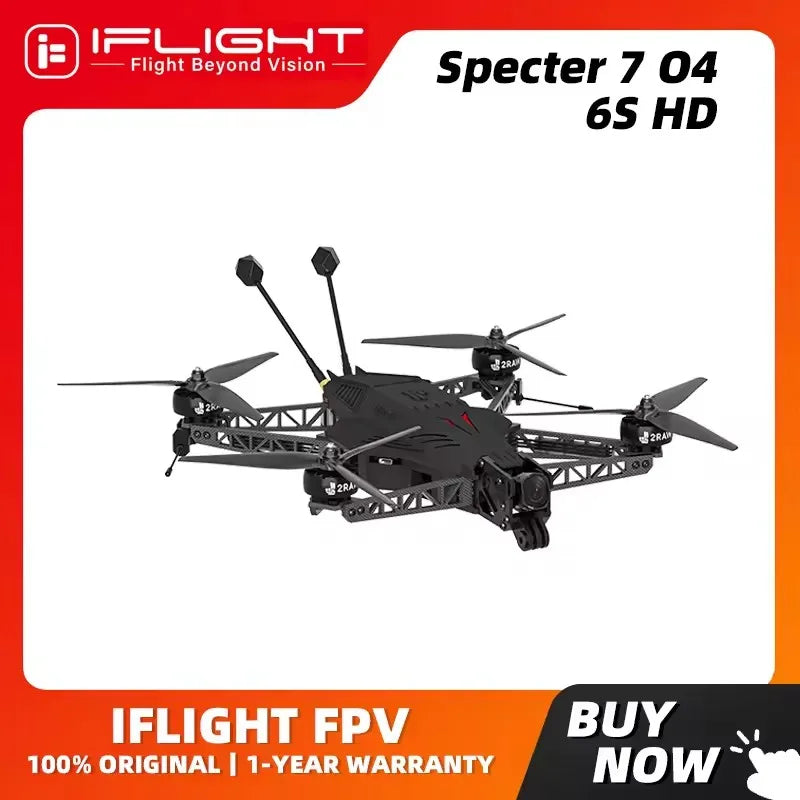

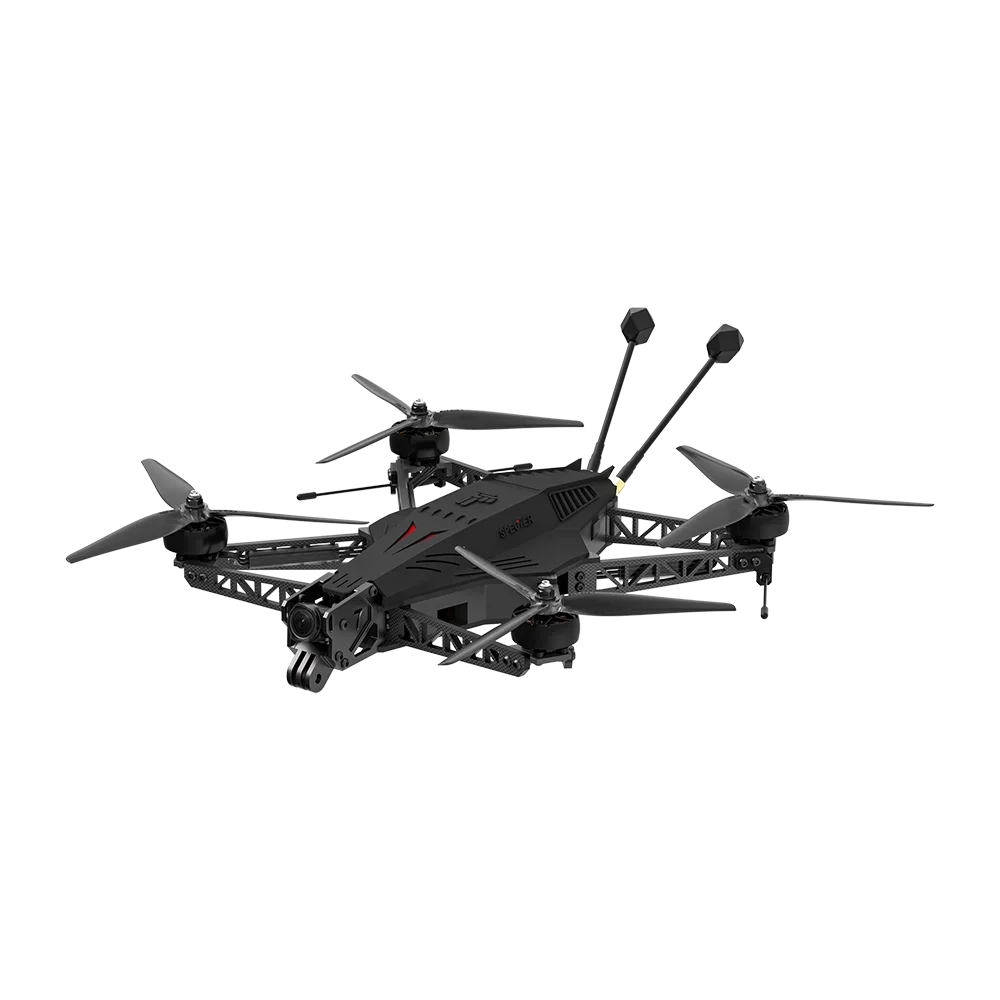

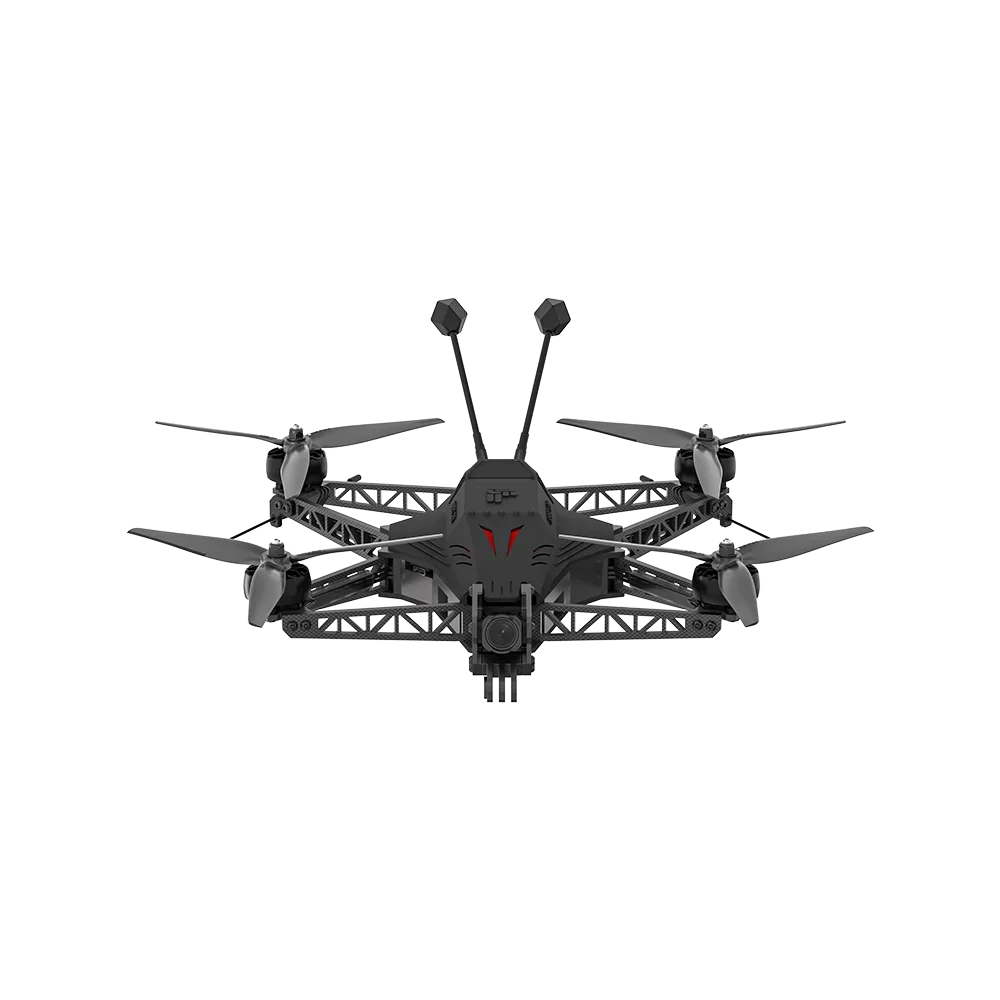

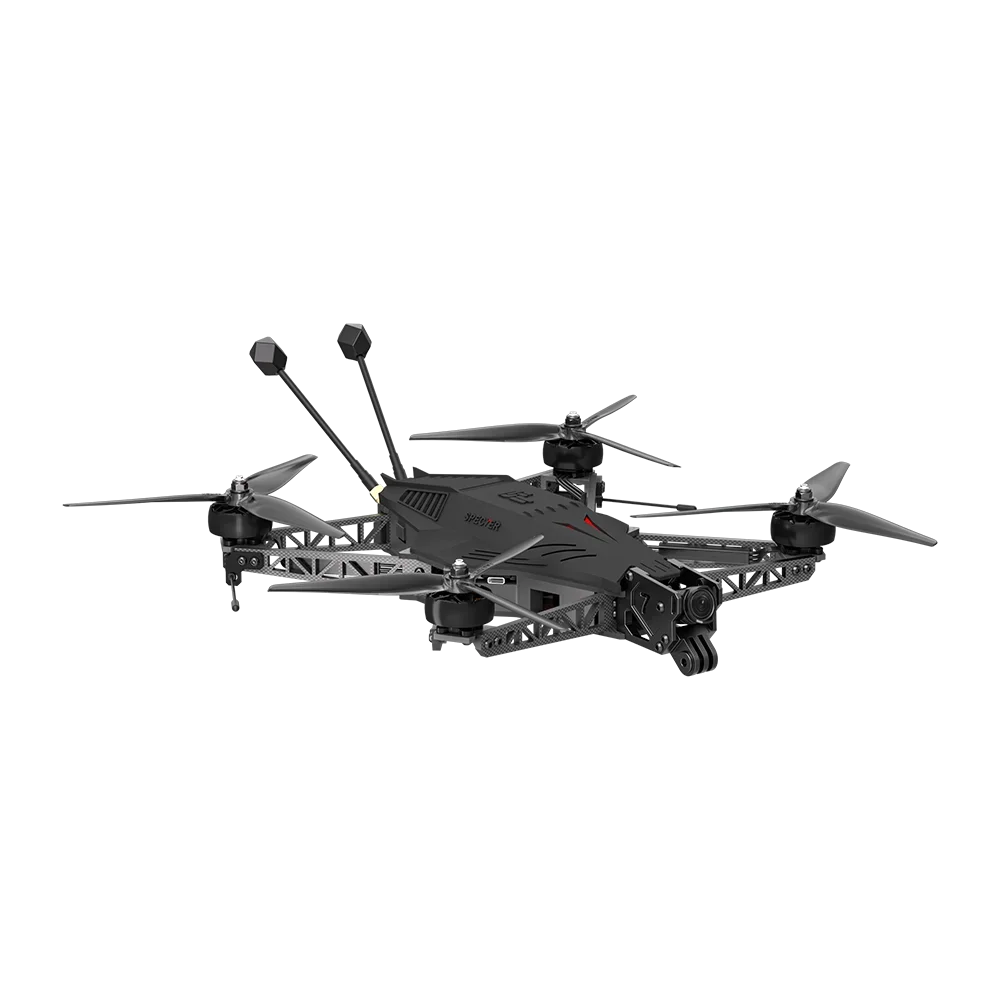

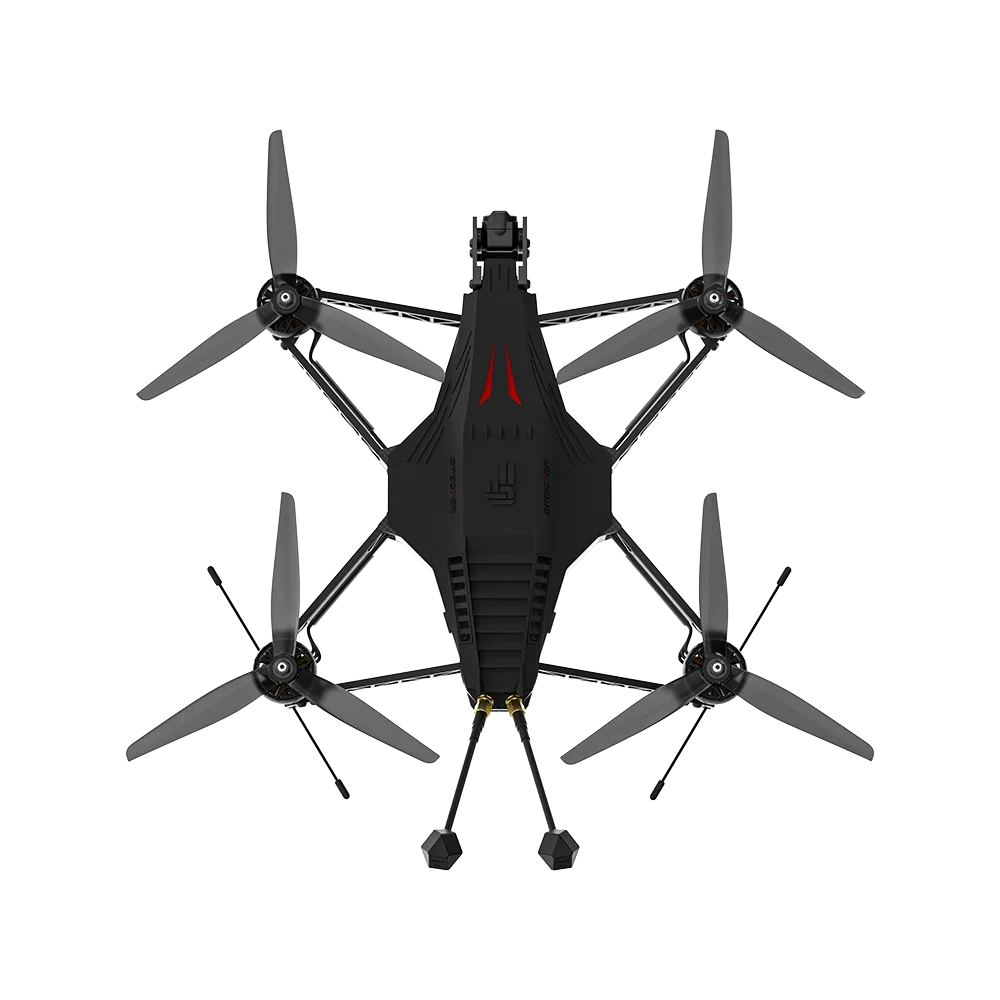

IFLIGHT Specter 7 O4 6S HD with O4 Air Unit Pro FPV Drone BNF for FPV Parts
IFLIGHT Specter 7 O4 6S HD with O4 Air Unit Pro FPV Drone BNF for FPV Parts
Description
SPEC7ER is a high-performance FPV drone by 2RAW and iFlight.
Equipped with premium components and an innovative design that emphasizes durability, aerodynamics, and easy maintenance.
HIGHLIGHTS:
Shell Quick-release
Access electronics within One click
Premium Electronics Package
The Spectre is equipped with advanced, high-end electronics, featuring a full-size GPS forrapid GPS lock and the 2RAW H7 Thunder flight controller, which minimizes electrical noise to deliver exceptionally smooth flight performance.
Easy Maintenance
The Spectre features a unique shell quick-release system that allows for easy one-click opening of the shell, providing full access to the internal electronics.
Reinforcement Structure
The Spectre incorporates CNC aluminium parts in key areas such as arm ends, internal arm joints, and the GoPro mount. This design simplifies the complex truss structure, allowing for easy assembly while ensuring exceptional strength.
Truss Design
The Spectre features the tried-and-tested 2RAW truss design for its arms, delivering an unparalleled strength-to-weight ratio while maintaining exceptional torsional resistance.
Aero Shell
2RAW's signature aero shell protects the internal electronics from debris and dirt, drastically improving the drone's aerodynamic performance in the sky. It also features integrated LEDs, allowing users to easily spot their drone in the air.
Unmatched FOV
With a unique underslung GoPro mounting method, the Spectre enables users to have no props in view from -45 to 45 degrees in both the DJI O3 feed and the GoPro feed.
Specifications:
Product Name: Specter 7 O3 6S HD
Geometry: Squashed X
FC: iFlight Thunder H7 Flight Controller
ESC: BLITZ E55 4-IN-1 ESC
Video Transmission: DJI O3 Air Unit
Frame: 306mm wheelbase
Motor: XING2 2806.5 1400KV motors
Prop: GEMFAN 7043*3 propellers
Dimensions (L×W×H): 232*201*62mm
Operating Temperature Range: -20—40
Antennas: Dual Antennas
GNSS: GPS+SBAS+Galileo+QZSS+Glonass
Video Transmission
Product Name: DJI O3 Air Unit
Communication Bandwidth: Max 40 MHz
FOV (single screen): 155°
Communication Frequency2.400-2.4835 GHz (RX only) / 5.725-5.850 GHz (RX and TX)
End-to-End Latency
With DJI FPV Goggles V2:
810p/120fps Video Transmission Quality: The latency is lower than 28 ms.
810p/60fps Video Transmission Quality: The latency is lower than 40 ms.
With DJI Goggles 2:
1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.
1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.
Max Video Transmission Bitrate: 50 Mbps
Max Video Transmission Range10 km (FCC), 2 km (CE), 6 km (SRRC)
Operating Temperature Range: -10º to 40º C (14° to 104° F)
Power Input: 7.4-26.4 V
Audio Transmission: N/A
Packing List
1 x Specter 7 O3 6S HD BNF
1 x Screw Bag
2 x Battery Strap
2 x Battery pads
Important
All iFlight BNFs are tested before shipment to guarantee the highest quality.
If you still encounter a problem after receiving your shipment, please immediately contact our iFlight customer support at www. iflightrc.freshdesk .com.
Note
1. iFlight products may be used for civilian purposes only and any direct or indirect use of iFlight products for or in connection with the following is prohibited:
(1) Any military combat purpose or military combat related use;
(2) Terrorist activities: The purchaser also shall require its customers or end users to comply with the foregoing requirements.
2. iFlight Partners must strictly adhere to applicable export control and sanction laws as well as any written compliance requirements regarding these controls issued by iFlight from time to time.
If Party A has violated applicable export control or economic sanctions laws and regulations, Party B has the right to immediately suspend delivery of products to Party A or terminate relevant cooperation without any liability.
